Technical guidance by Jiangsu Dongyuan
Jiangsu Dongyuan is an industrial DC motor manufacturer in China. This GE CD365AT DC motor replacement reference addresses the process of evaluating a candidate replacement for the GE CD365AT DC motor in metal processing slitting line main drive applications. The proposed direction is the ZF200-11 DC motor model. Final selection requires verification against your specific installation and operating conditions.
Reference Data from the Original Motor
The following ratings are supplied as reference data to anchor the replacement discussion. These figures alone do not confirm equivalence.
- Excitation voltage: 180 V
- Power: 45 kW
- Speed: 1750 rpm
- Voltage: 380 V
Present these values to your engineering team as the starting baseline. The GE DC Motor Replacement Solutions page provides additional context on our evaluation methodology.
Application Context for Slitting Line Main Drives
Slitting line main drives demand consistent torque delivery across speed ranges. The GE CD365AT has served this role; the ZF200-11 represents a candidate direction requiring case-by-case validation. Metal processing environments impose mechanical and thermal loads that must be matched, not assumed. Application-specific duty cycles, acceleration requirements, and tension control precision all influence whether a proposed motor can perform satisfactorily.
Critical Parameters Requiring Confirmation
A replacement motor must be verified against dimensions, electrical characteristics, and mechanical interfaces. The following checklist identifies minimum confirmation points:
- Nameplate ratings: power, voltage, speed, excitation voltage, armature current, and field current
- Dimensional drawings: shaft diameter and extension, mounting flange or foot configuration, overall length, and center height
- Cooling method: separately ventilated, self-ventilated, or forced cooling with airflow requirements
- Field winding data: shunt, series, or compound configuration and resistance values
- Operating conditions: ambient temperature, altitude, duty type, and direction of rotation
Without this data, any proposal remains preliminary. The Z4-200 DC Motor page illustrates how we document comparable candidate models for customer review.
Why Work With Us
Jiangsu Dongyuan provides three core capabilities to support your replacement project as a Chinese DC motor factory. We review motor nameplates and confirmed electrical ratings for replacement selection. We review customer-supplied dimensional drawings and mounting information. We recommend a candidate motor and identify parameters that still require confirmation. We do not claim guaranteed interchangeability or performance without complete data.
Practical Confirmation Checklist
Use this sequence before proceeding with any replacement direction:

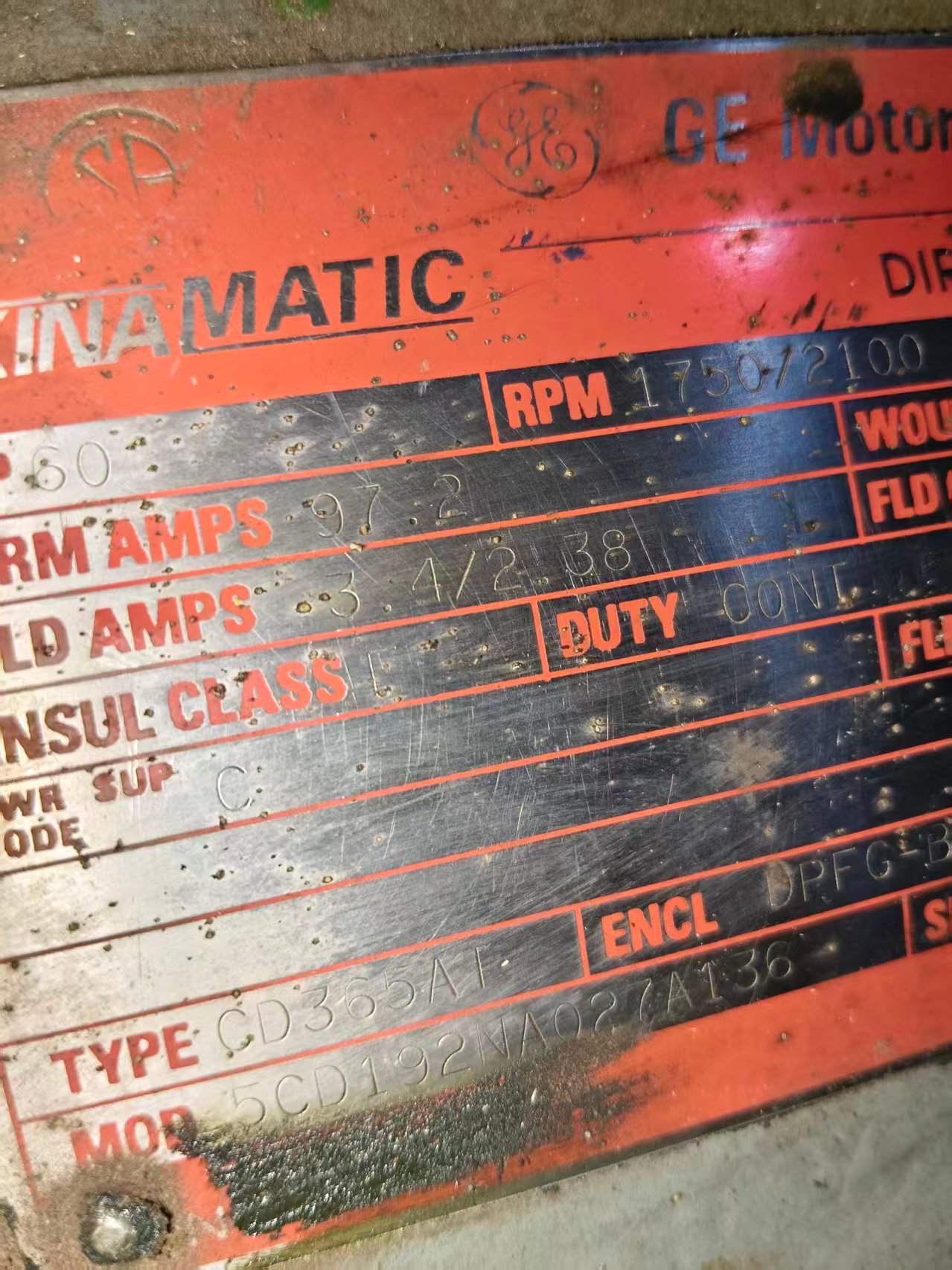

- Photograph the original GE CD365AT nameplate and record all visible ratings
- Obtain or measure mounting dimensions, shaft configuration, and coupling details
- Document cooling requirements and available ventilation infrastructure
- Collect field winding specifications and control scheme documentation
- Define operating conditions including duty cycle, environmental factors, and speed range
- Submit complete package for engineering review and candidate recommendation
The China-Made Alternatives to ABB/GE/Siemens & Nanyang DC Motors – Dongyuan Z Series resource offers supplementary guidance on evaluating Chinese DC motor factory options against legacy installed equipment.
Next Steps for Your Replacement Project
Treat the ZF200-11 as a candidate requiring formal verification, not a confirmed GE CD365AT replacement motor. Engage your maintenance and engineering teams to compile the checklist items above. Our technical staff will assess this information against the proposed direction and flag any gaps.
To move forward, please provide: the original motor nameplate with all ratings; electrical ratings including voltage, current, and excitation data; dimensional drawings and mounting details; cooling method and field configuration; and complete operating conditions for your slitting line main drive. This enables us to recommend a properly evaluated candidate rather than an unverified assumption.

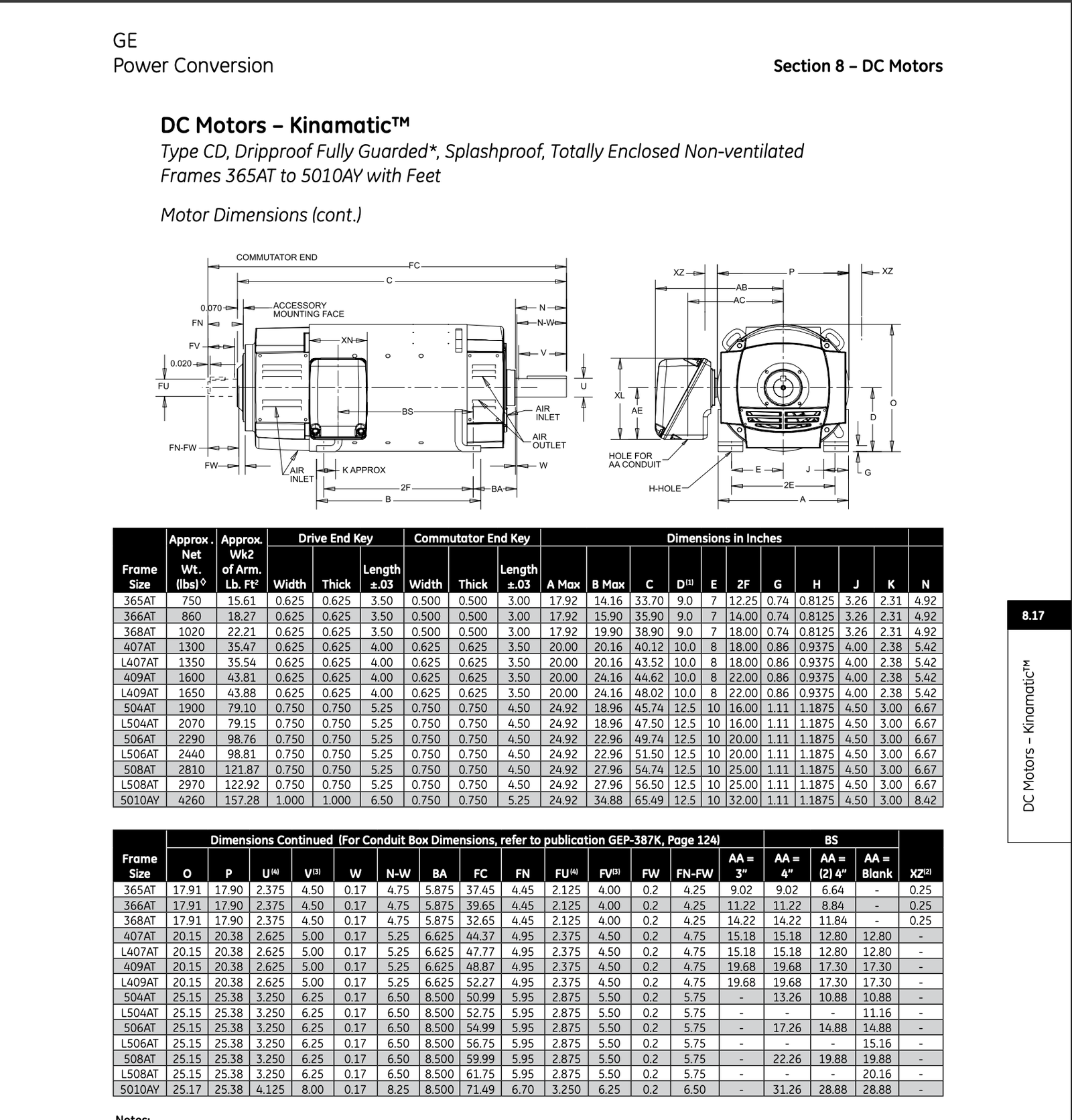

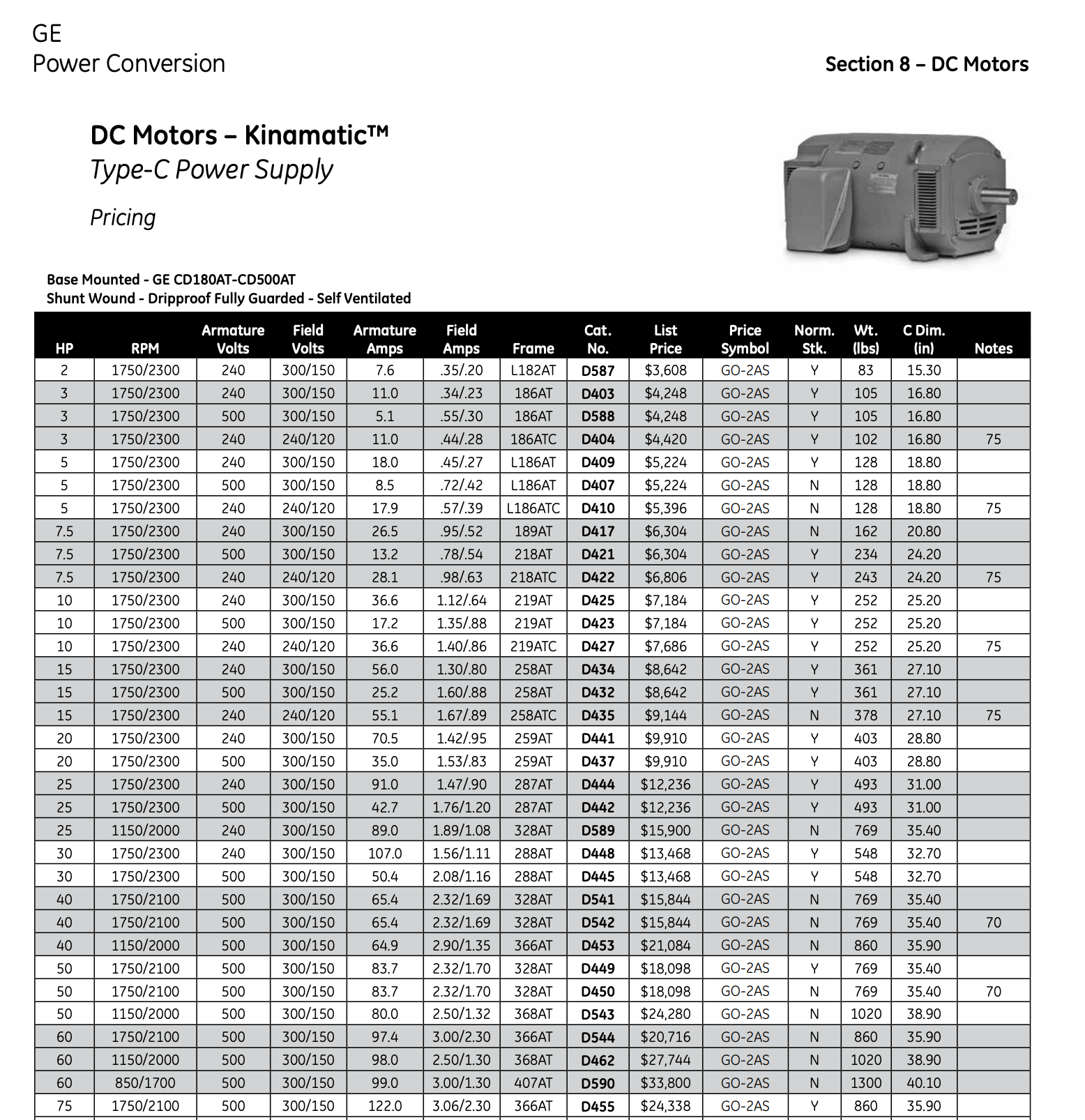

Project Reference Images
